ET420 - 4-20 mA Loop Current Receiver

Features:

Eliminates DC Power Supply
Individual Electronic Protection for each channel
Loop Current Indication LEDs
Testing & Calibration Connectors
Simple, straightforward wiring
Low cost, easy mounting

Application:

The ET420 board provides convenient way for interfacing 4-20 mA current loops with any generic DDC panel that accepts 5 VDC input signals.

The board simplifies wiring (two wires in - two wires out) and eliminates the need for a separate DC power supply required by all current 'sinking' devices.

The board is ideal to interface and protect any 4-20 mA field device such as RTD / RH transmitters, flow meters or any industrial current loop signals.

Product Description:

The ET420 four channel board converts four 4-20 mA signals to four independent 1-5 VDC outputs. The board provides individually protected 24 VDC power supply for each current loop. The output signals are buffered by unity gain op-amps.

Each channel is equipped with a large LED indicating the current loop status. The input excitation is electronically short circuit and reverse polarity protected thus any short condition in one loop will not affect the operation of other devices. Each loop has a jumper allowing for fast loop circuit disconnect and convenient loop current measurement with an in-line mA meter.

The board also accepts 4-20 mA current from two wire sourcing devices. In such case, the 24 VDC excitation is not used and the input signal is wired to different terminals.

The board is equipped with angular connectors for fast and easy wiring. It mounts in a molded snap-track

Specifications:

Power:	24 VAC, 400 mA RMS maximum (@ all loops in short condition)
Input:	4-20 mA current loop (two or three wire)
Output:	1-5 VDC buffered signal (250R precision conversion resistors)
Loop Excitation:	24VDC, electronically protected (Imax = 100 mA)
Indication:	Current Loop Status - Amber LED; Power ON (green LED);
Dimensions:	W=2.75" (70 mm); L=3" (75 mm); boards mounts in TR-2 snap-track (provided).

Information:

Datasheet	PDF

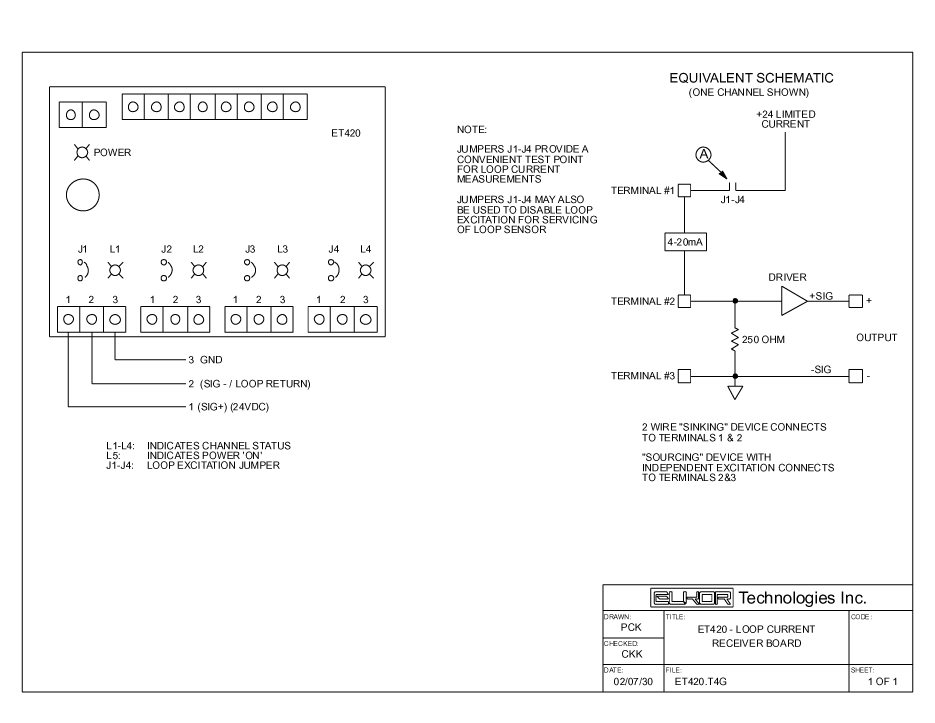

Wiring Diagram	PDF	GIF
